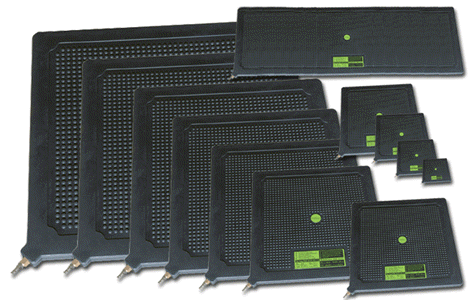

HIGH PRESSURE HEAVY LIFTING AIR BAGS

high-pressure heavy lifting air bags reinforced with KevlarŪ cord for heavy-duty, low profile heavy lifting, emergency rescue,HAZMAT management or industrial use. All metal parts are solid brass.

Heavy lifting bags are thin profile and simple to use. The convex dimpled, interlocking surface provides superior gripping power when two lifting bags are stacked on top of each other. Eleven standard sizes are available with lift capacity up to to 70 tons.

The application range of our standard pneumatic lift bags is further expanded by our heavier industrial lift bags. Custom engineered heavy lifting bags for special purpose applications are also available. Use for heavy load shifting, dunnage,leveling, or padded support up to 70 tons and higher.

*Note: Selection of the proper air bag depends on the ratio of height vs. weight. You would not use a 30  ton air bag to actually lift 30 tons. Maximum lift height decreases as the weight increases. Use the graph above to determine the maximum height any particular bag will lift a certain weight.



SHOW METRIC		SLK 1.1/2.8	SLK 3/5	SLK 6/6	SLK 11/7	SLK 14/9	SLK 23/11	SLK 28/12	SLK-L 24/8	SLK 35/14	SLK 46/17	SLK 59/18	SLK 74/20
Item number	#	77973	77974	77975	76734	76735	76736	76737	77983	76738	76739	76794	76740
Size - deflated	inch	6X6	9X9	12X12	15X15	18X18	22X22	24X24	13X41	27X27	31X31	35X35	36X36
Thickness	Inches	1.1"	1.1"	1.1"	1.1"	1.1"	1.1"	1.2"	1.1"	1.2"	1.2"	1.2"	1.2"
*Max lift height	Inches	2.7"	5.1"	5.9"	7.0"	8.6"	10.6"	11.8"	7.9"	14.1"	16.5"	17.7"	20.0"
*Max Load	US Tons	1.1	3.1	6.4	10.8	14.2	22.7	27.7	24.2	35.3	46.4	58.8	74.1
Bag weight	Lbs	1.32	2.8	5.3	8.8	11.6	17.8	24.6	19	29.3	40.1	49.6	55.8
Max. pressure	PSI	116	116	116	116	116	116	116	116	116	116	116	116
Test pressure	PSI	174	174	174	174	174	174	174	174	174	174	174	174
Burst pressure	PSI	464	464	464	464	464	464	464	464	464	464	464	348
Volume	cu./ft.	.18	.53	1.48	3.04	5.37	10.45	14.7	7.91	21.9	32.5	46.8	53.1
List Price	USD	$291.58	$466.04	$766.16	$803.98	$858.88	$904.02	$1,055.30	$1,139.48	$1,600.64	$1,952.00	$2,427.80	$2,958.50
