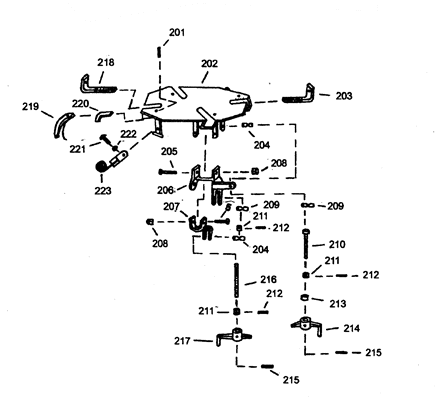

MODEL NO. PHJ0055C-HEAD
1/2 TON TELESCOPIC TRANSMISSION JACK (HEAD ONLY)
| ITEM NO. | PART NO. | QTY | DESCIPTION |
| 1 | 201 |
3 | Pin 6 X 22 |
| 2 | 202 |
1 | Bracket Frame |
| 3 | 203 |
3 | Movement |
| 4 | 204 |
2 | Axis |
| 5 | 205 |
2 | Bolt |
| 6 | 206 |
1 | Movement Frame |
| 7 | 207 |
1 | Movement Frame |
| 8 | 208 |
2 | Nut M12 |
| 9 | 209 |
2 | Breech Block |
| 10 | 210 |
1 | Screw Frame |
| 11 | 211 |
3 | Cover |
| 12 | 212 |
3 | Pin 5 X 22 |
| 13 | 213 |
1 | Cover |
| 14 | 214 |
1 | Handle |
| 15 | 215 |
2 | Pin 5 X 22 |
| 16 | 216 |
1 | Screw |
| 17 | 217 |
1 | Handle |
| 18 | 218 |
1 | Movement |
| 19 | 219 |
3 | Spring Frame |
| 20 | 220 |
3 | Turn Back |
| 21 | 221 |
1 | Bolt M6 x 10 |
| 22 | 222 |
1 | Washer 6 |
| 23 | 223 |
1 | Rope Frame |
| |
